PL Plus V2X Series
Mainstream Indoor Rental Solution
A Proven Performer for Indoor Rental Stages
The PL Plus V2X series brings better visuals, greater creative freedom, and smarter operation to indoor rental applications. Whether you need flat, curved, cube, or flexible displays, this family of panels works seamlessly together to bring your stage vision to life. Built for reliability, ease of use, and stunning image quality, PL Plus V2X is a proven performer you can count on.

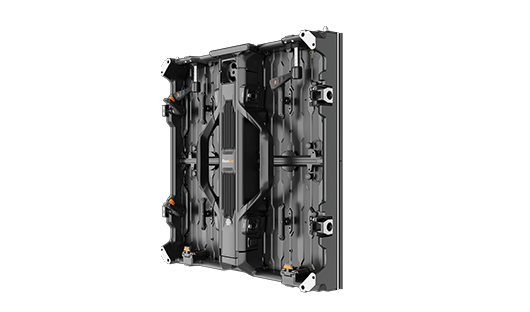

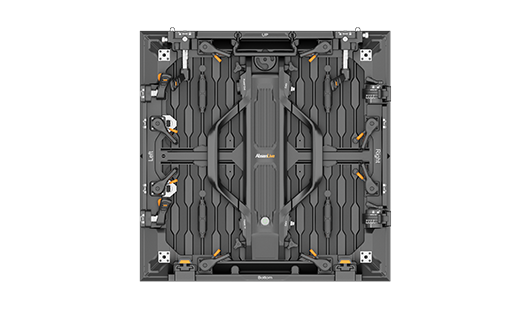

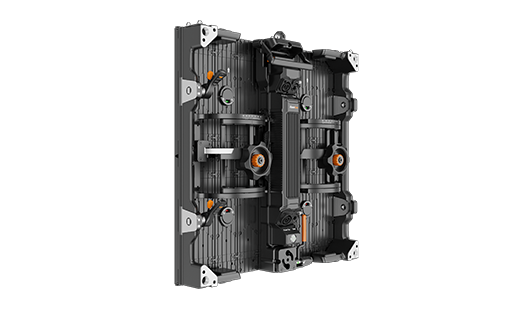

PL Plus V2X Panels
P1.9, P2.5
500(W) × 500(H) × 78(D)mm
PL-B Plus V2X Cube Panels
P1.9, P2.5
500(W) × 500(H) × 78(D)mm
PL-C Plus V2X Flexible Displays
P1.9, P2.5
500(W) × 500(H) × 80(D)mm
Engineered for Indoor Stage Perfection
Experience breathtaking visuals with the PL Plus V2X series. It features 1200nits adjustable brightness, a 7000:1 contrast ratio (P2.5), 16-bit grayscale, and a 7680Hz refresh rate. The 95% DCI-P3 color gamut ensures cinematic color accuracy, while the 120Hz frame rate minimizes flicker even at low brightness — achieving 7680Hz refresh at just 18.6nits, far superior to conventional 60Hz products requiring 115nits.

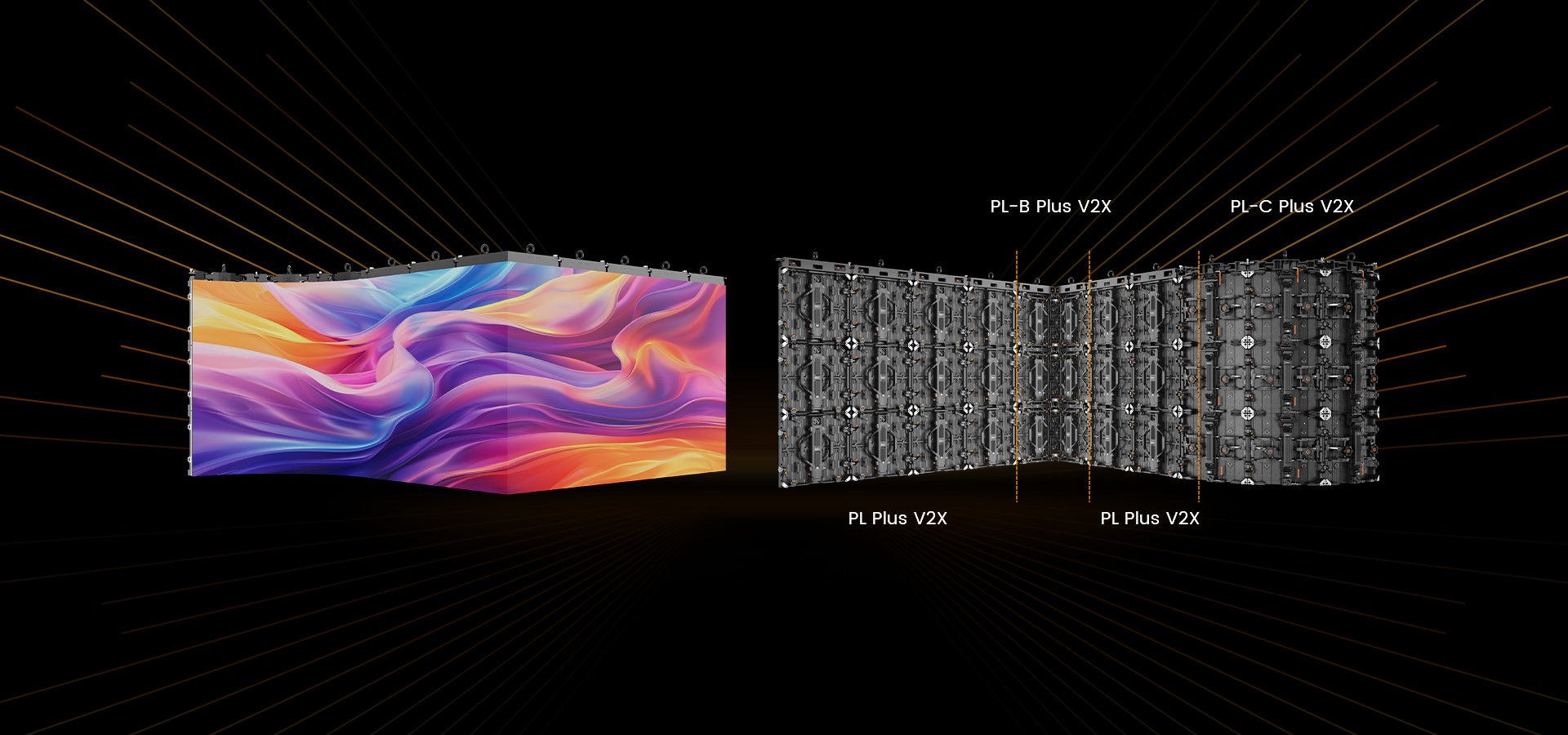

Unlimited Horizontal Connections, Perfect Visual Uniformity
The PL Plus V2X series supports unlimited horizontal connections, giving you the freedom to build any stage shape you want. With same-batch LEDs and color-matched masks across all panels, you get consistent, uniform display performance no matter how creative your layout becomes.

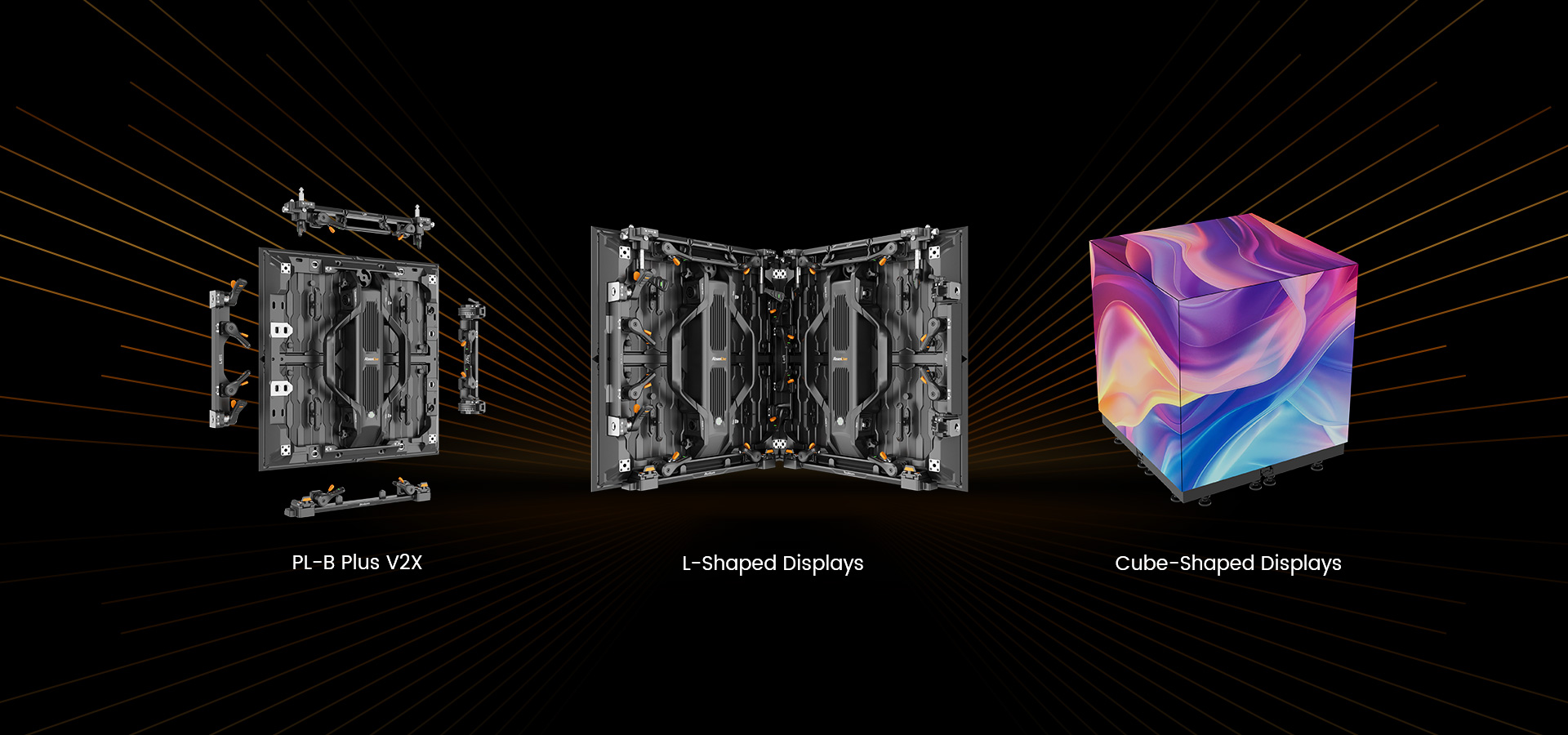

Quick 90° L-Shapes, Precision Cube Assembly
The PL-B Plus V2X cube panel enables tool-free 90° L-shaped connections with its quick-release locking system. For 5-sided cubes, right-angle connectors with captive screws ensure secure and precise assembly between the top/bottom and side panels. This rapid assembly flow transforms complex builds into simple, intuitive steps — perfect for cube displays and seamless corners.

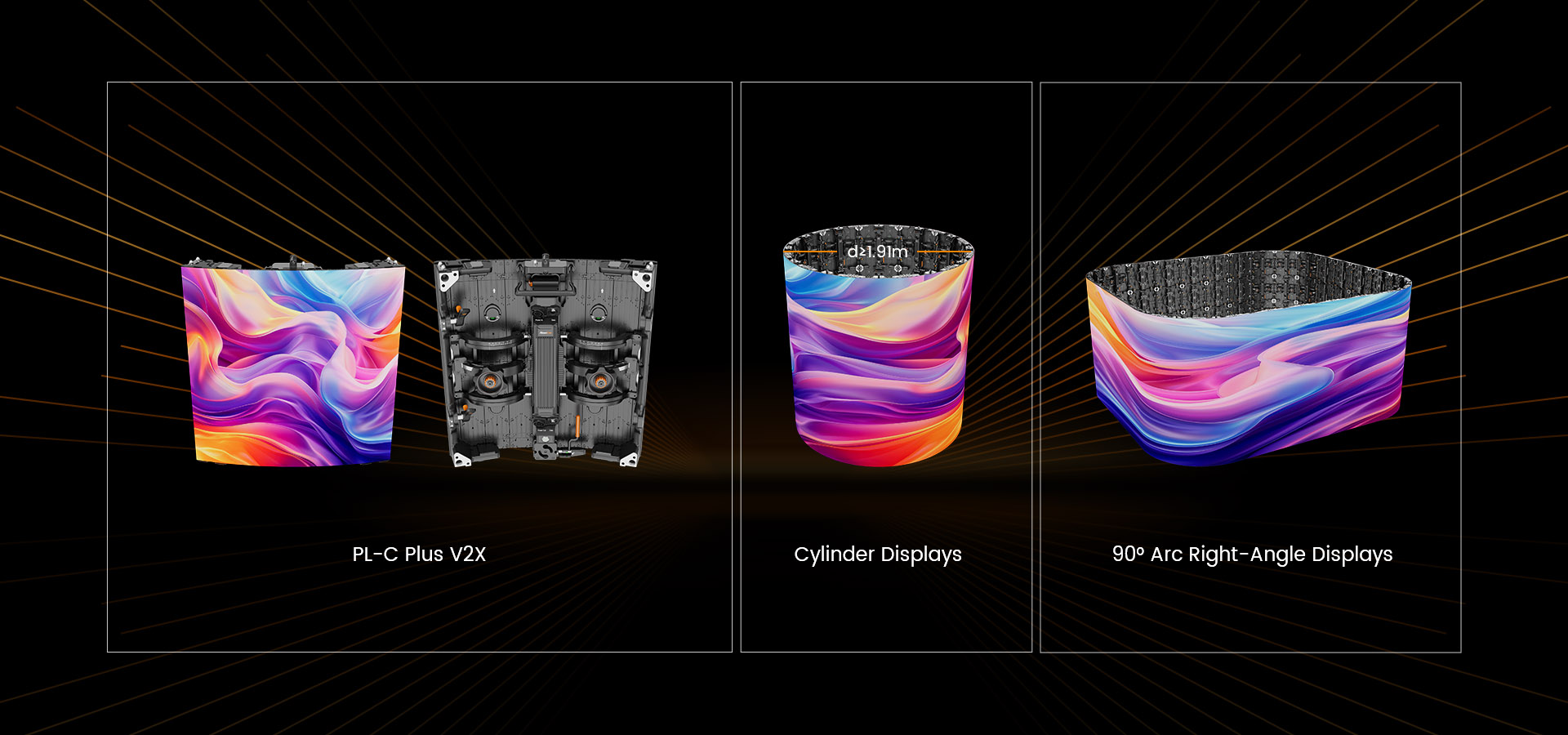

Gear-Driven Precision, Effortless Curves
The PL-C Plus V2X flexible displays feature a precision gear-driven curvature control mechanism that allows adjustment from -30° to +30° in 1.25° increments, providing 25 settings. A right angle with a 90° arc can be created using just three columns of panels. Whether you’re designing smooth S-curves, cylinders, or dramatic arcs, the PL-C Plus V2X gives you professional control over curvature.

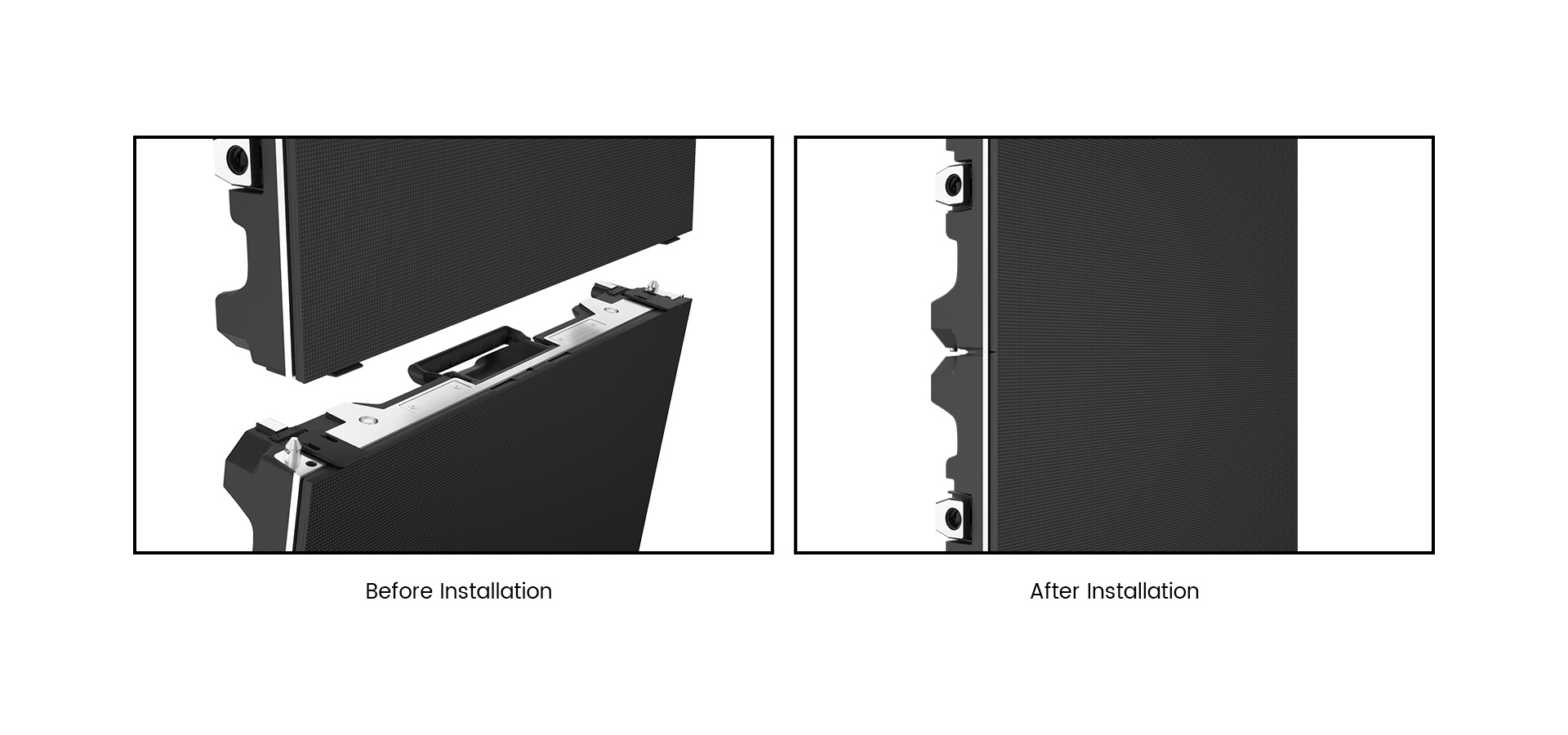

Automatic Edge Protection, Drastically Reduced Pixel Damage
When placed on the ground, the protective structure on PL Plus V2X and PL-C Plus V2X panels automatically protrudes to shield edge LEDs from damage. When panels are vertically connected, the protective structure retracts and hides seamlessly, giving you peace of mind during setup and transport.

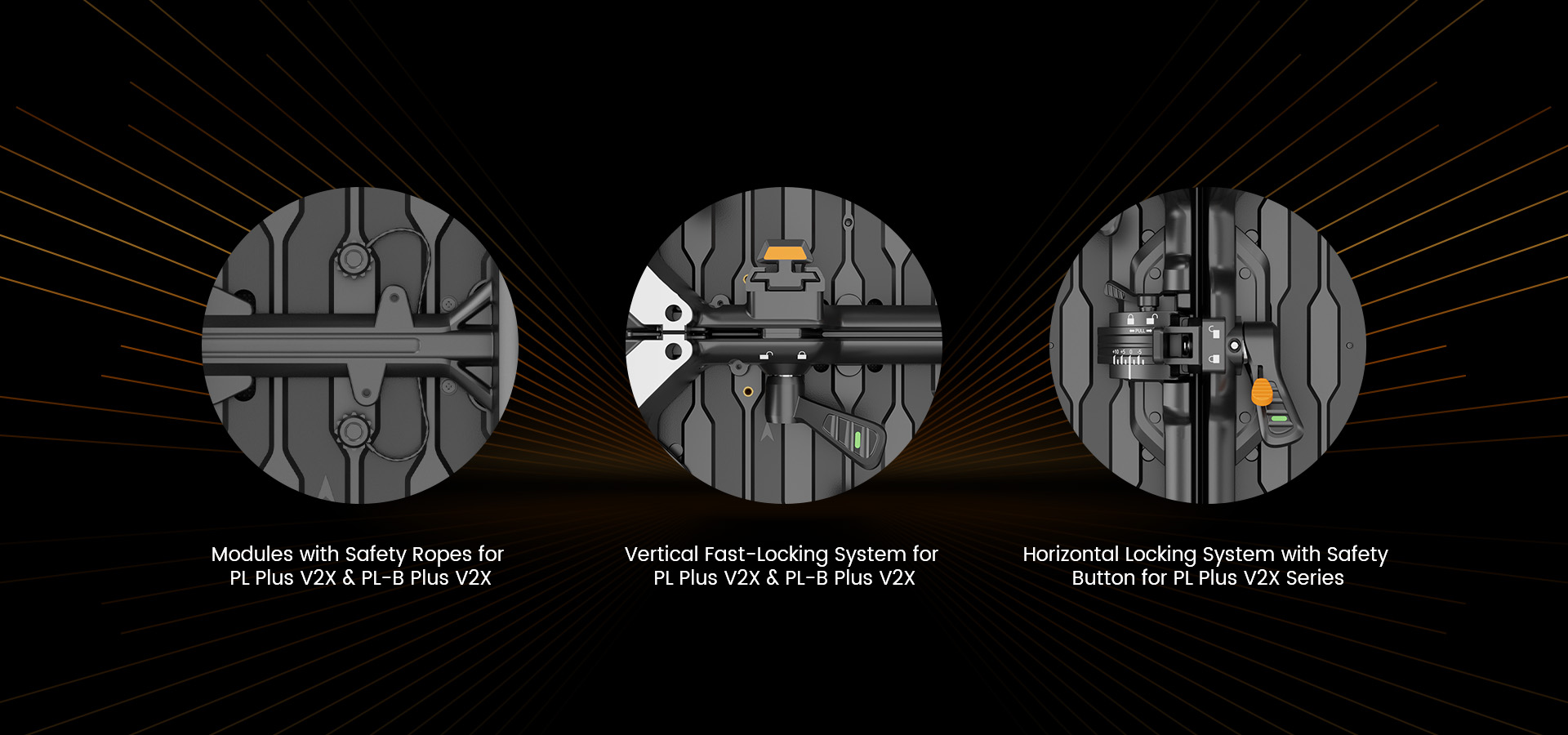

User-Friendly Operation, Built Safe & Locked Secure
The PL Plus V2X series is designed for fast, safe, and intuitive operation. Features include modules with safety ropes, a vertical fast-locking system, and a horizontal locking system with a safety button. The auto-magnetic cabinet design snaps into alignment for a quick, one-person setup.

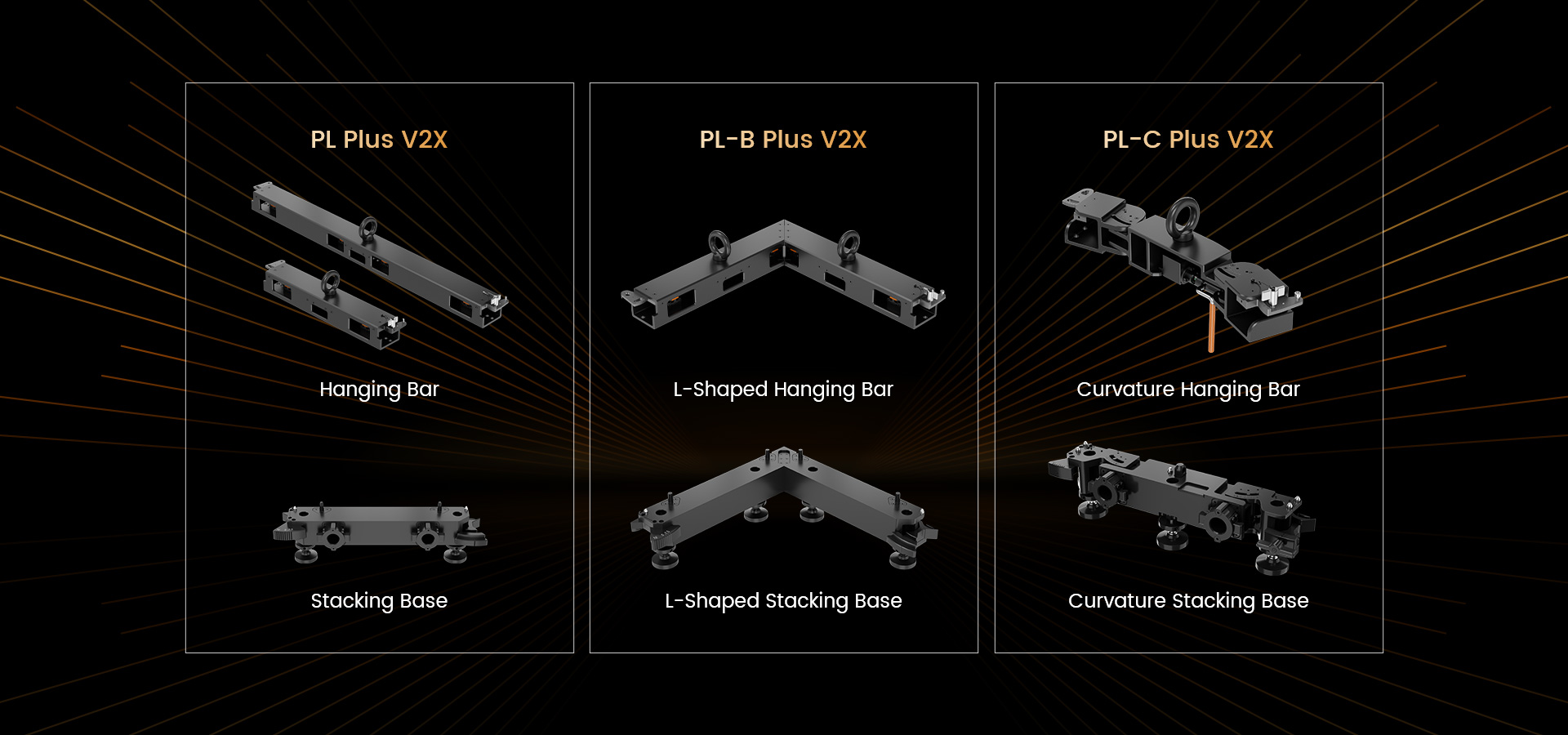

Hanging & Stacking Installations
The PL Plus V2X series supports robust installation solutions. The maximum hanging height reaches 10 meters, while the maximum stacking height is 5 meters. L-shaped hanging bars and stacking bases offer stability for secure 90-degree connections, while the curvature bars and bases are perfect for crafting elegant arcs. The hanging bars and stacking bases of PL Plus V2X are also compatible with PL-B Plus V2X and the PL V2 series.

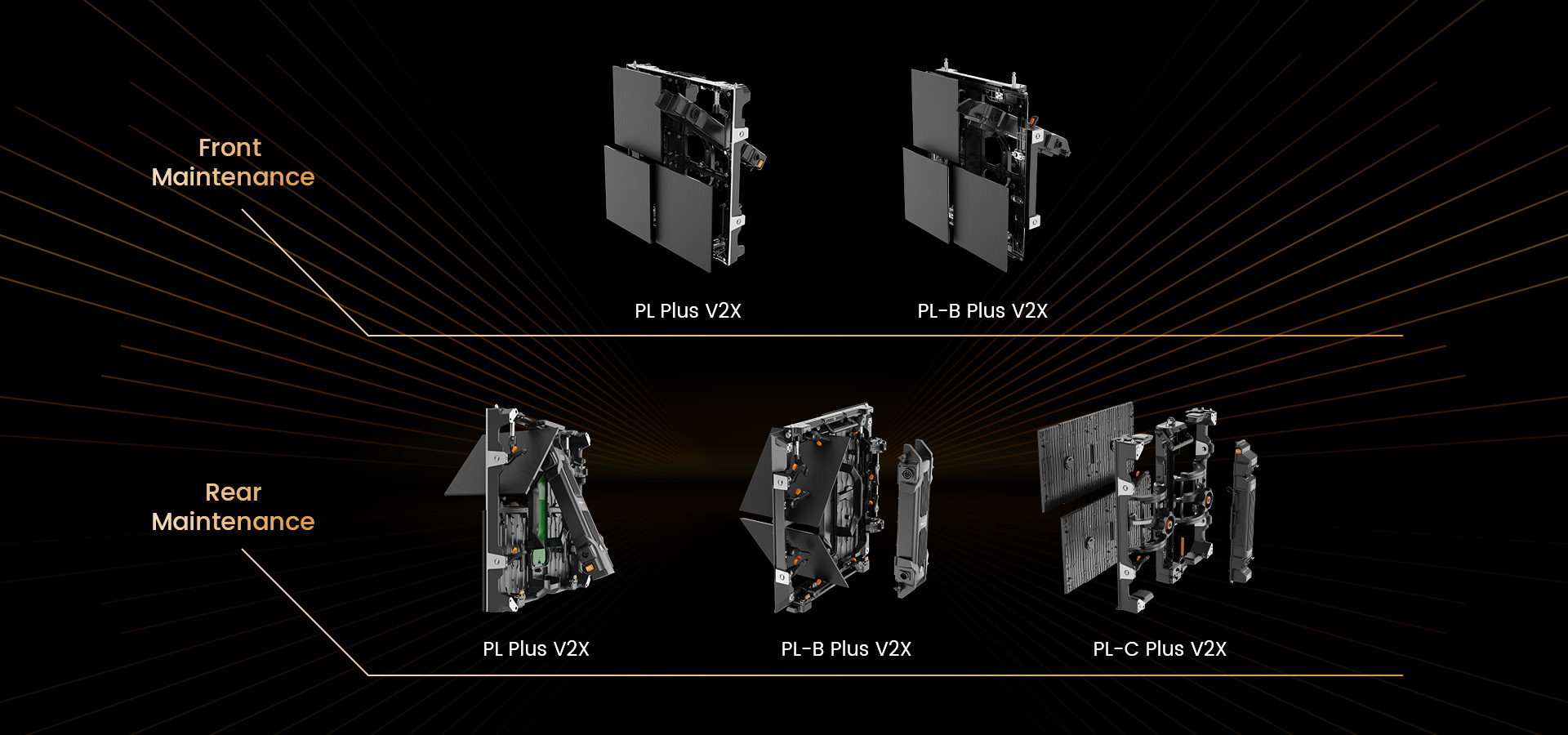

Hassle-Free Maintenance
Featuring a modular design, the PL Plus V2X series allows rapid swaps of modules and power boxes for simplified service. Whether on the road or in a fixed venue, maintenance is quick and hassle-free, minimizing downtime for your productions.

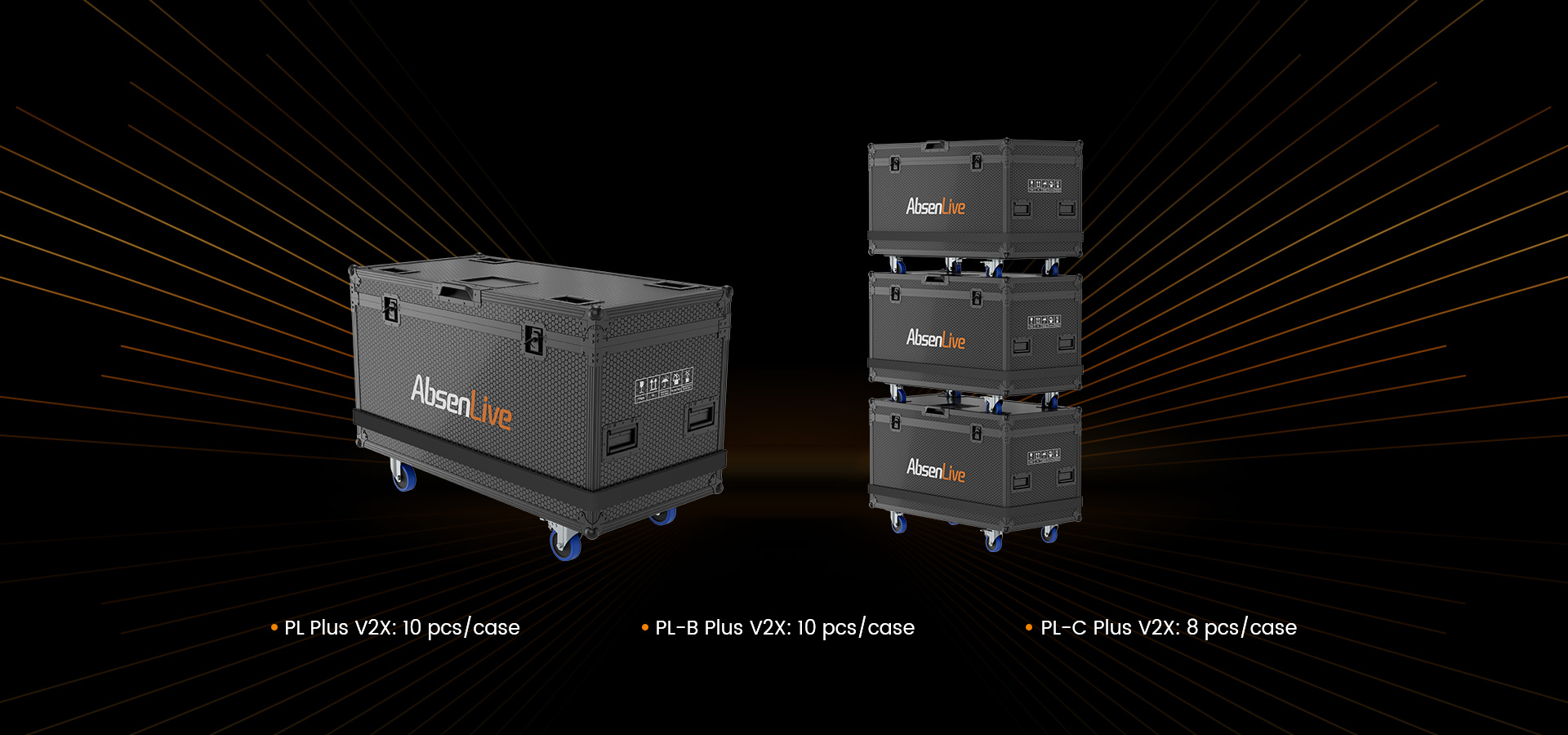

Protected Transport, Optimized Logistics
The 10-in-1 flight case fits PL Plus V2X and PL-B Plus V2X panels, while the 8-in-1 case is designed for PL-C Plus V2X flexible displays. All cases share uniform external dimensions and support triple-stack deployment for efficient storage and shipping.
Case Introduction
OSA International Delivers Megan Moroney’s Tour Visuals With Absen X5 LED Displays
Absen X5 LED displays helped OSA International deliver durable, tour-ready visuals for Megan Moroney’s multi-venue national tour.
OSA International – Andrea Bocelli 2025 Tour
Absen partnered with OSA International to power Andrea Bocelli’s 2025 tour with AbsenLive Saturn Series LED panels, delivering immersive visuals, precise color accuracy, and touring-grade efficiency across every performance.
Xr214 Studios
Trilogy Studios, USA
Trilogy Studios in Dallas used AbsenLive’s PR2.5 to create a J-shaped LED volume with LED ceiling

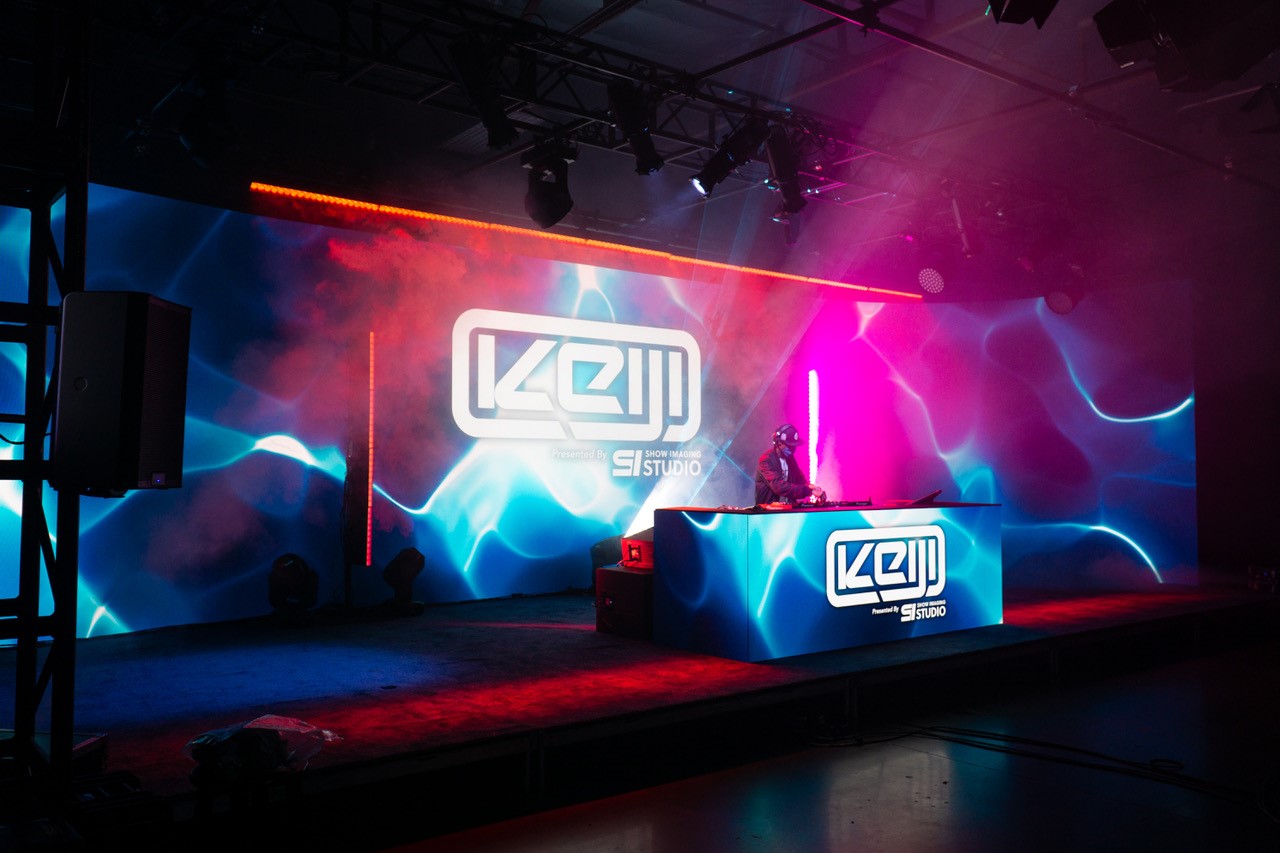

Show Imaging Studio
